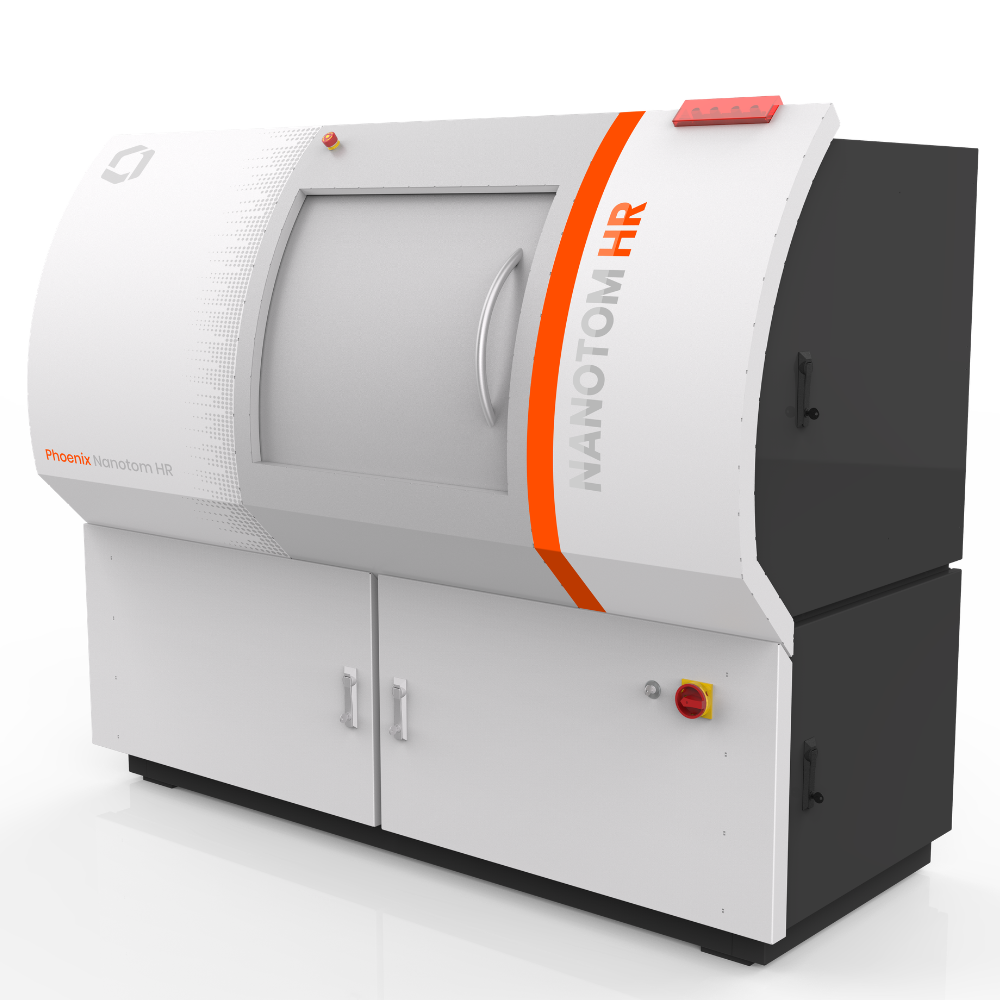

Waygate Phoenix Nanotom® HR

The most advanced nanoCT system

Manufacturers Website Add to info request

Introduction

The Waygate Phoenix Nanotom HR redefines submicron CT by combining the resolution required for research with everyday usability. It combines 50 nm detail resolution with impressive contrast and unmatched speed. With its open tube design, large-area detector technology, and easy programmability, the Nanotom HR enables the visualization of the smallest details, accelerating research and enabling faster, more confident decision-making.

Details

Thanks to the new submicron resolution X-ray tube, microstructures and fine details invisible with conventional CT are now visible in even higher resolution.

300 nm focal spot power → fewer repetitions, greater consistency and reliability for every single examination.

Granite-based manipulator → vibration-free stability for repeatable measurements.

Product options

Helix|scan: perfect image sharpness for scanning longer samples
Measurement technology package: temperature-stabilized cabin, motion system on granite bed, high-precision measurement system
Target: diamond window with tungsten and molybdenum window

Parameters

Extreme resolution nanofocus X-ray tube with excellent stability. Suitable for 24-hour operation, maximum tube power: 160kV/17W
Temperature-stabilized, dynamic DXR detector (3072 x 2400 pixels) (For NAotom M, delete the GE part for the DXR detector!!!)
Granite bed
Target: tungsten or molybdenum
Best detail detection: up to 50 nm
Sample size: up to 240 mm diameter
System dimensions: 1,980 mm x 1,600 mm x 925 mm
System weight: 1,900 kg
