Dosing of liquid materials
In the electronics industry, ELAS provides comprehensive automated solutions for various dispensing tasks, be it gluing, filling, vacuum potting, sealing, shape tracking, solder paste, SMT bonding or even thermal paste dispensing.
Details are here:
SMT technologies
From the ELAS portfolio, we can recommend to partners even complete production lines for SMT.
The complete solutions for each technological step are as follows:
Product automation and marking - Nutek
Small, medium production Pick&Place - FRITSCH
Solder paste printing - MPM, PBT
Soldering
Soldering is the heart of electronics manufacturing. We offer automatic machines for various tasks from our leading suppliers:
Reflow soldering - Electrovert
EXAMINATION AND EXAMINATION
In today's electronics industry, quality and reliability are key. To ensure these aspects, our portfolio includes several different test equipment:
Optical inspection equipment (AOI and SPI) – Mirtec, Yamaha
E-LAB
In our application technology laboratory, i.e E-LABit can be found in many of the devices we sell. Thanks to that, on the one hand, we can present the possibilities of the equipment to our partners, and on the other hand, we can perform soldering and testing tasks. Two are in the lab GE Phoenix X-ray is also available, for which we also provide machine operator training as needed.
IPC education
ELAS is an official IPC training and certification center (licensed IPC training and certification center) and registered member. With several training and certification programs, we also teach the IPC Standards on Application Engineering (CIS) and three levels of Standards Trainers (CIT) (IPC-A-610, IPC-7711/21 and J-STD-001). Our IPC instructors are waiting for those who want to get the qualification anywhere in the country and in their own training room.
NEWS
SOON! X-ray inspection services in Belgrade ELAB!

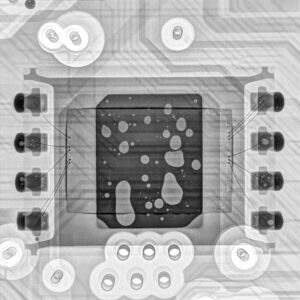

The Waygate Micromex CT X-ray device will be installed in the ELAS DOO showroom in Belgrade. The device will be available for demonstrations, inspection services and rental. Waygate technology enables high-resolution 2D or even 3D X-ray examination for our partners. Everyone who needs a solution for debugging and product quality control is welcome. In addition to Micromex's technical capabilities, we leverage the expertise of the ELAS team in electronic product testing and manufacturing to provide troubleshooting guidance and technical advice.
The most frequently tested samples:
Semi-finished and finished electronic devices
Integrated circuits
Aluminum castings
Examination of cable industry products and terminals
Injection molded plastic parts
For more details click here!
SMALL SERIES OF MANUAL AND AUTOMATIC PLANTS:
Fritsch SMT
The specialty of the well-known German manufacturer is the development of manual and automatic planting machines. We recommend these machines to those just starting out in electronics manufacturing or small batch manufacturers who value flexibility but still need a precise and reliable machine. Fritsch machines with a wide selection of implantable parts and a large number of feeders are ideal for large mix and small volume production with few changes. In addition to solder paste dispensing heads that can be integrated into Fritsch machines, the product range also includes manual pattern printers and minireflow ovens, so that even the entire small batch of the production line can be assembled as needed.
For more details click here!
SELECTIVE RIDER – INSTRUMENT FOR MEASURING THE CONDITION OF SELECTIVE SOLDERING MACHINE
A gap-filling tool from ECD, with which the performance of any selective soldering machine can be reproducibly tested and monitored even without a test panel. The data can be displayed in a new module of the already well-known MoleMAP software, and customized key process indicators (KPIs) can be statistically analyzed (SPC).
The main parameters of selective soldering that can be tested:
Preheat temperature, solder height, actual nozzle position (X, I, Z), solder diameter, nozzle end solder temperature and immersion time. With the help of the Minifluxometer, the spray pattern of the DropJet or Ultrasonic fluxer can be examined and possible clogging and slippage of the application can be detected.
The instrument can be used to test inline or offline selective soldering machines of any brand. We are also happy to be available to our partners for on-site testing, please contact us regarding this elas@elas.hu on adress.
