PBT SuperSwash
Introduction

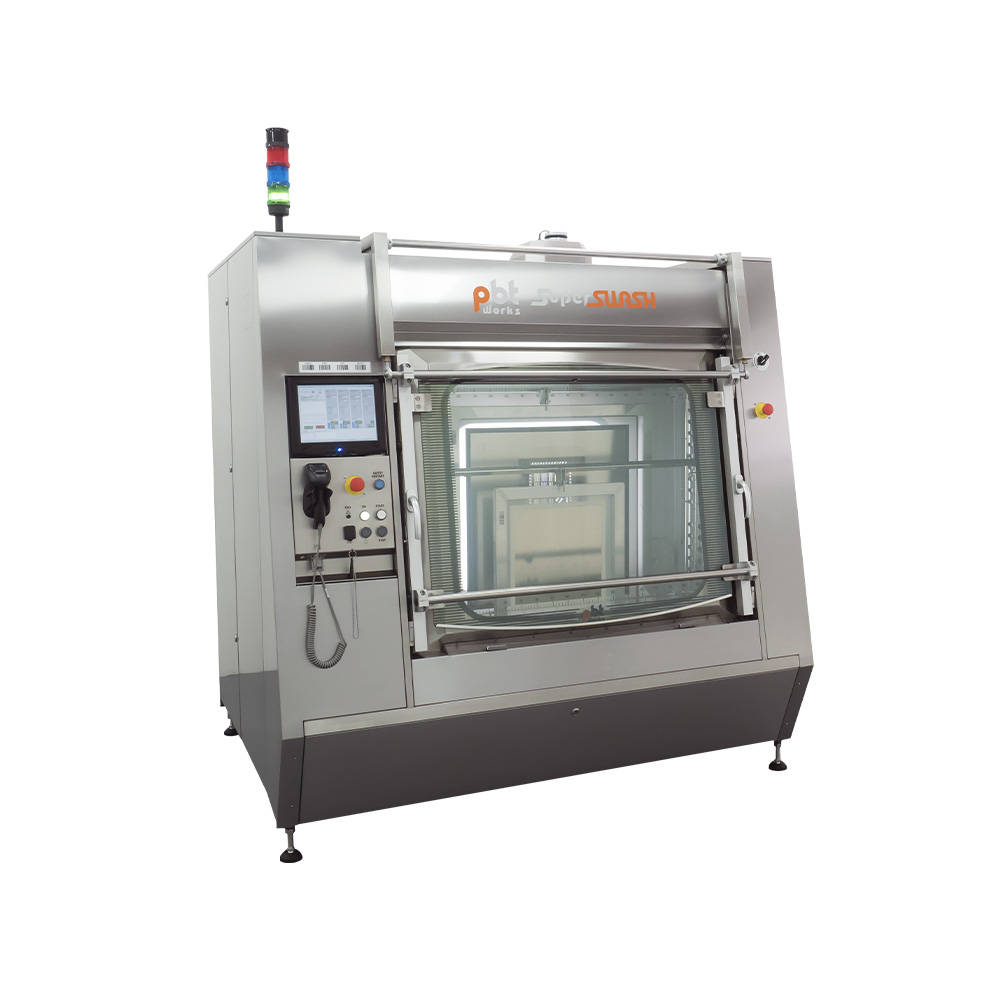

The PBT SuperSwash II is an automatic, high-pressure cleaning system for cleaning stencils, misprints and mounted panels. Thanks to the innovative design of the cleaning chamber, linear nozzle system, suction and mist extraction system, drastically reduced detergent consumption and perfect wash quality in short cycle times! SuperSwash is the fastest stencil washer on the market.
Details
- High pressure spray in air technology, physical and chemical cleaning at the same time
- Patented linear washing technology for homogeneous, high wash quality

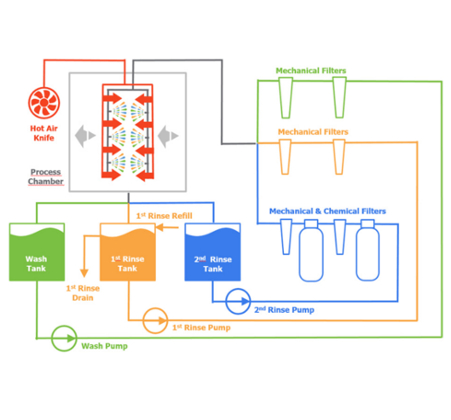

- Isolated liquid treatment
- Extremely low detergent consumption
- Easy maintenance
- Heatable cleaning fluid max. 60°C
- Heatable rinsing liquid max. 45°C
- Drying temperature max. 120°C
- Industrial PC control, easy washing program writing
- 3 levels of mechanical solvent filtration
- 4 levels of integrated ion exchange water treatment
- Controlled parameters
- Cleaning time
- Cleaning temperature
- Warm air drying time
- Flush water quality setting
Product Options
- Multiple configurations (2 cycle wash – rinse or 3 cycle wash – pre-rinse – final rinse)
- Zero Drain, no run-off operability in the production area
- Twingo design with double washing frame, interchangeable washing arm
- For washing high parts up to 80mm wide panels with a wider interchangeable washing arm
- Connectivity to an external water source
- Detergent concentration measurement – Zestron eye / Kyzen analyst
- Unique, varied product, stencil clamping solutions
- Washing frame holder revolver stand for easy product loading and unloading
- Extra extraction fan
- Lighting tower
- Stencil and product barcode scanning for traceability
- Also for washing ceramic products (DCB)
Parameters
Cycle times:
Stencil 10-12 minutes
Mounted panel 20-30 minutes
- Equipment dimensions: 1700 x 1420 x 1735 mm
- Workspace size:
- Single 830 x 816 x 80 mm
- Twingo 740 x 740 x 40 mm
Image gallery
Product showcase videos
SuperSwash II for stencils
Fastest stencil cleaning machine on the market, where Twingo configuration can clean and dry two stencils in less than 10 min.
Linear spray technology
Homogeneous outstanding washing results at all points of the washing frame or stencil.
Linear air knife drying
High-pressure, heated air knife blows off and dries washed PCBs or stencils with fast cycle times and low electrical consumption.
