PBT CompaClean
Introduction

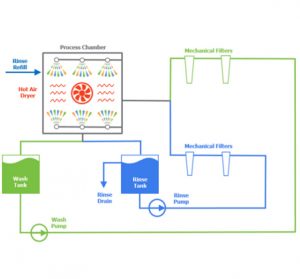

The PBT Compaclean II is available in different configurations to provide ideal solution for both the cleaning of mounted boards or cleaning of solder pallets with higher capacities. Thanks to its innovative fluid treatment, detergent consumption is minimized. The cleaning baskets is moving over 68 high-pressure nozzles on the top and bottom, ensuring that the products do not overshadow each so the detergent reaches all points of the products.
Details
- CompaClean II – for maintenance cleaning of soldering and coating frames
- CompaClean III – for PCB cleaning
- High pressure washing spray in air technology
- Patented wash basket moving over the nozzles, even cleaning with minimal shadow effect
- Heatable cleaning fluid max. 60°C
- Heatable rinsing liquid max. 45°C
- Drying temperature max. 120°C
- Washing capacity 140 eurocards (100 x 160 mm) or 6-8 solder frames (450 x 500 x 500 mm)
- Industrial PC control, washing program writing
- 3 levels of solvent filtration
- 4 levels of integrated ion exchange water treatment
- Controlled parameters
- Cleaning time
- Cleaning temperature
- Warm air drying time
- Flushing water quality (conductivity)
Product Options
- Multiple configurations (cleaning-rinse and cleaning-pre-rinse-finalrinse)
- Central rotation arm positioning for double deck wash baskets
- Connectivity to an external water source
- Zero Drain, no run-off operability in the production area
- Detergent concentration measurement – Zestron eye / Kyzen Analyst
- Light tower
- Product and solder frame barcode scanning, traceability
Parameters
- Cycle times:
- Mounted panel 40-60 minutes
- Soldering frame 30-40 min
- Reflow oven parts 60 min
- Workspace dimensions: 450 x 500 x 500 mm (W x H x D)
- Equipment dimensions: 880 × 1680 × 1866 mm (W x H x D), 380 kg
Image gallery
Product showcase videos
CompaClean
Homogeneous PCB and palette cleaning results with easy handling and programmability.
